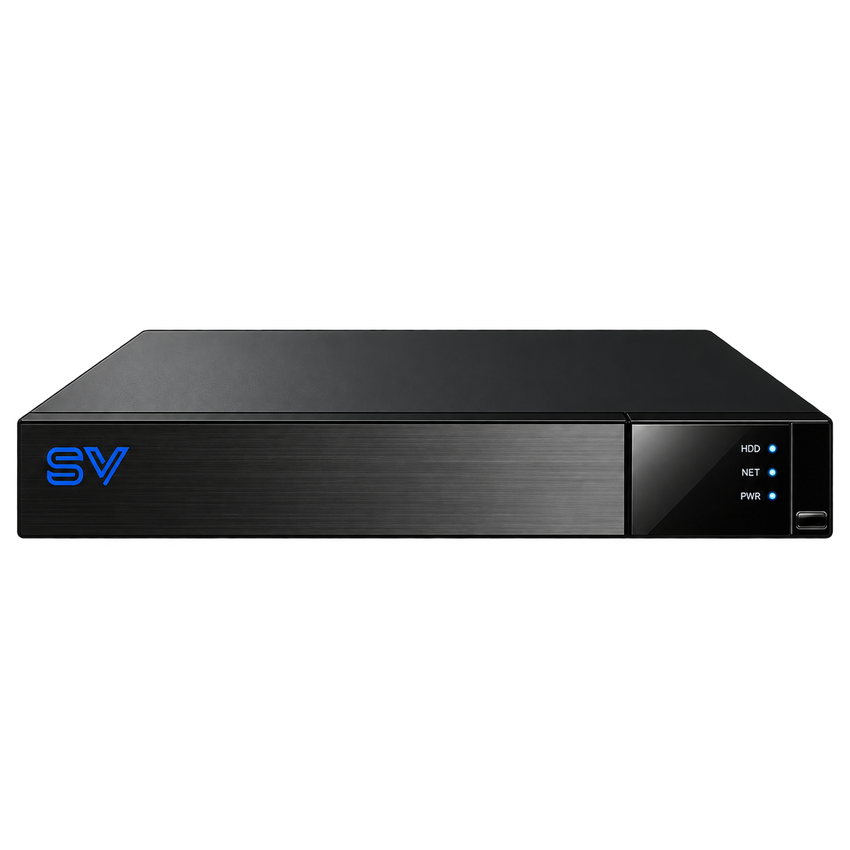

TVT SV -NVR53316H2-16P-4K | 16-Channel 4K AI PoE Network Video Recorder
NDAA Compliant
16-channel 4K PoE network video recorder with AI face recognition, 16 PoE ports and two SATA HDD bays.
FEATURES

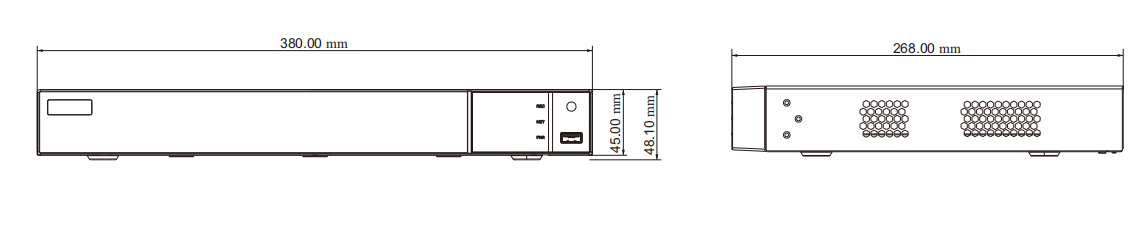

DIMENSIONS

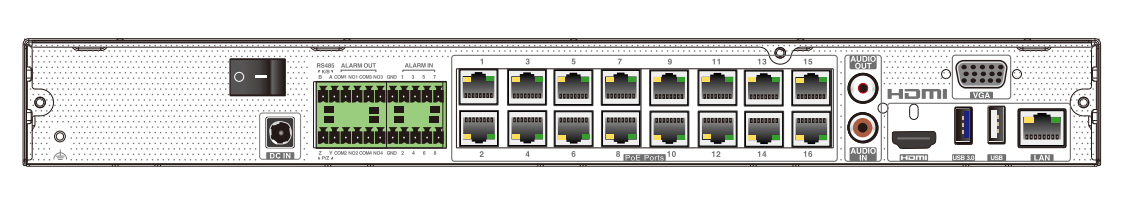

REAR PANEL
System
| Model | TVT SV -NVR53316H2-16P-4K | |
|---|---|---|
| Operating System | Embedded Linux | |
Video
| IP Video Input | 16CH IPC input | |
|---|---|---|
| Video Compression | H.265S / H.265+ / H.265 / H.264 | |
| Supported Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF | |
| Incoming / Outgoing Bandwidth | 192Mbps / 192Mbps | |
| HDMI Output | 3840×2160 / 1920×1080 / 1280×1024 / 1024×768 | |
| VGA Output | 1920×1080 / 1280×1024 / 1024×768 | |
| Video Output Mode | VGA can output the same or a different video source from HDMI | |
| Multi-screen Display (Main) | 1 / 4 / 6 / 8 / 9 / 13 / 16 | |
| Multi-screen Display (AUX) | 1 / 4 / 6 / 8 / 9 | |
| AI Mode | Max. 16CH; HDMI and VGA output the same video source; AI by device, face comparison and picture comparison supported | |
| Non-AI Mode | Max. 25CH; HDMI and VGA can output the same or different video sources; AI by device, face comparison and picture comparison not supported | |
Audio
| Network Audio Input | 16CH IPC audio input | |
|---|---|---|
| Two-way Audio | RCA × 1 | |
| Local Audio Output | RCA × 1 | |
| Audio Compression | G.711 (U/A) | |
Recording
| Recording Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF | |
|---|---|---|
| Recording Frame Rate | NTSC: 30fps; PAL: 25fps | |
| Recording Modes | Manual / Timed / Motion / Sensor / POS / AI | |
Playback
| Simultaneous Playback | Max. 16CH | |
|---|---|---|
| Playback Search | Time slice / Time / Event / Tag / Smart search | |
| Smart Search | Colour-highlighted recording timeline for different events | |
| Playback Functions | Play / Pause / Fast Forward / Fast Backward / Digital Zoom | |
Decoding Capability
| Non-AI Mode | 1×16MP@30fps / 4×8MP@30fps / 9×3MP@30fps / 16×2MP@30fps | |
|---|---|---|
| AI Mode | 1×16MP@30fps / 4×5MP@30fps / 9×2MP@30fps / 16×720P@30fps | |
Alarm
| Alarm Modes | Manual / Sensor / Motion / Exception / Smart events | |
|---|---|---|
| Alarm Input | 8CH local alarm input | |
| Alarm Output | 4CH | |
| Alarm Triggering | Record / Snapshot / Preset / E-mail / etc. | |
Face Recognition
| Face Detection (AI by IPC) | 16CH | |
|---|---|---|
| Face Detection (AI by Device) | Picture comparison disabled: 2CH (2MP) or 1CH (4MP); enabled: 1CH (2MP) or 1CH (4MP) | |
| Face Match | Picture comparison disabled: 6CH; enabled: 3CH | |
| Comparison Capability | 18 pictures/second | |
| Face Picture Database | 32 libraries; 10,000 face pictures | |
| Face Picture Search | Search by picture supported | |
| Database Management | Add / Modify / Delete / Search face pictures | |
| Face Picture Adding | APP / WEB / External import | |
| Face Picture Comparison | Successful face recognition and stranger match alarms | |
| Face Tracking | Track display on a map | |
| Statistical Graph | Bar graph | |
| Statistical Reporting | Day / Week / Month / Quarter / Custom time period | |
Perimeter Protection
| Human / Vehicle Classification (AI by IPC) | 16CH | |
|---|---|---|
| Human / Vehicle Classification (AI by Device) | Picture comparison disabled: 2CH (2MP) or 1CH (4MP); enabled: 1CH (2MP) or 1CH (4MP) | |
Video Metadata
| Human / Vehicle Attribute Analysis (AI by IPC) | Yes | |
|---|---|---|
Other Functions
| Fisheye | Supports fisheye camera access | |
|---|---|---|
| Plate Recognition (AI by IPC) | Yes | |
Network
| Network Interface | RJ45 1000Mbps × 1 | |
|---|---|---|
| Network Protocols | TCP/IP / IPv4 / IPv6 / UDP / PPPoE / DHCP / DNS / DDNS / UPnP / NTP / HTTP / FTP / SMTP / HTTPS / 802.1x / RTSP / RTP / RTCP / WebSocket / SNMP / IGMP / ONVIF | |
| Client Connections | Max. 64 users | |
PoE
| PoE Ports | RJ45 100Mbps × 16 | |
|---|---|---|
| PoE Standard | IEEE 802.3af/at | |
| PoE Output Power | ≤150W | |
Storage
| HDD Interface | SATA × 2 | |
|---|---|---|
| Maximum HDD Capacity | 10TB per HDD | |
Backup
| Local Backup | USB flash drive / USB mobile HDD | |
|---|---|---|
| Network Backup | Yes | |
External Interfaces
| RS-485 | Yes (full-duplex), for PTZ or keyboard | |
|---|---|---|
| USB | USB 3.0 × 1; USB 2.0 × 2 | |
| Remote Controller | Optional | |
Mobile
| Supported Operating Systems | iOS / Android | |
|---|---|---|
Power
| Power Supply | DC 48V / 3.75A | |
|---|---|---|
| Power Consumption | ≤20W (without HDD and PoE power supply) | |
Physical & Environmental
| Dimensions (W × D × H) | 380 × 268 × 45mm | |
|---|---|---|
| Operating Temperature | -10°C to +50°C | |
| Operating Humidity | 10% to 90% | |
| Certifications | CE / FCC | |
| Environmental Compliance | EU RoHS / REACH / WEEE | |
