TVT SV PRODUCT

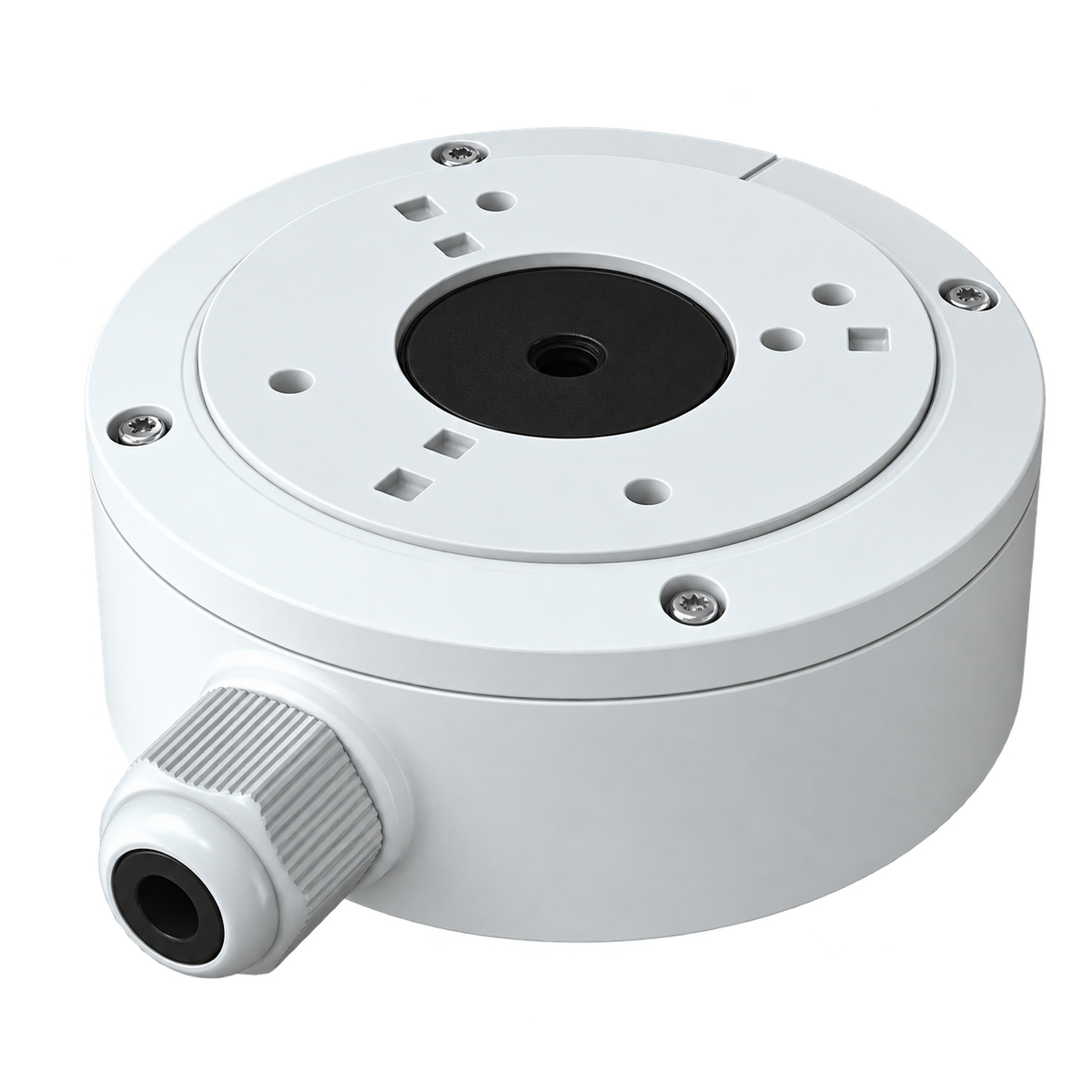

TVT SV -J-BOX301 | Junction Box
Water-resistant aluminium alloy junction box for neat CCTV cable management, suitable for wall or ceiling mounting.
FEATURES

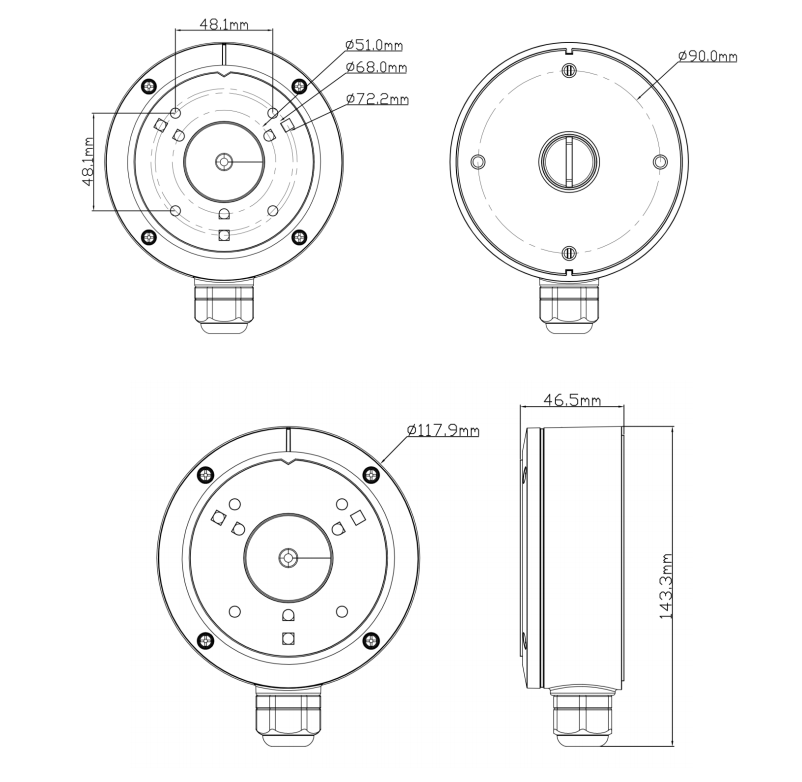

DIMENSIONS
Specifications
| Model | TVT SV -J-BOX301 | |
|---|---|---|
| Material | Aluminum alloy | |
| Color | White | |
| Min. Packaging Quantity | 20 | |
| Packing Size | 325 × 315 × 265mm | |
| Dimension | 117.9 × 47mm | |
| Load Bearing | The wall must be strong enough to withstand at least 3 times the weight of the camera and the junction box | |
| Net Weight | 380g | |
| Working Temperature | -40°C ~ +60°C (-40°F ~ +140°F) | |
| Working Humidity | 10% ~ 90% | |
Available Model
| Available Model | TVT SV -J-BOX301 | |
|---|---|---|
| Product Type | Junction Box | |
