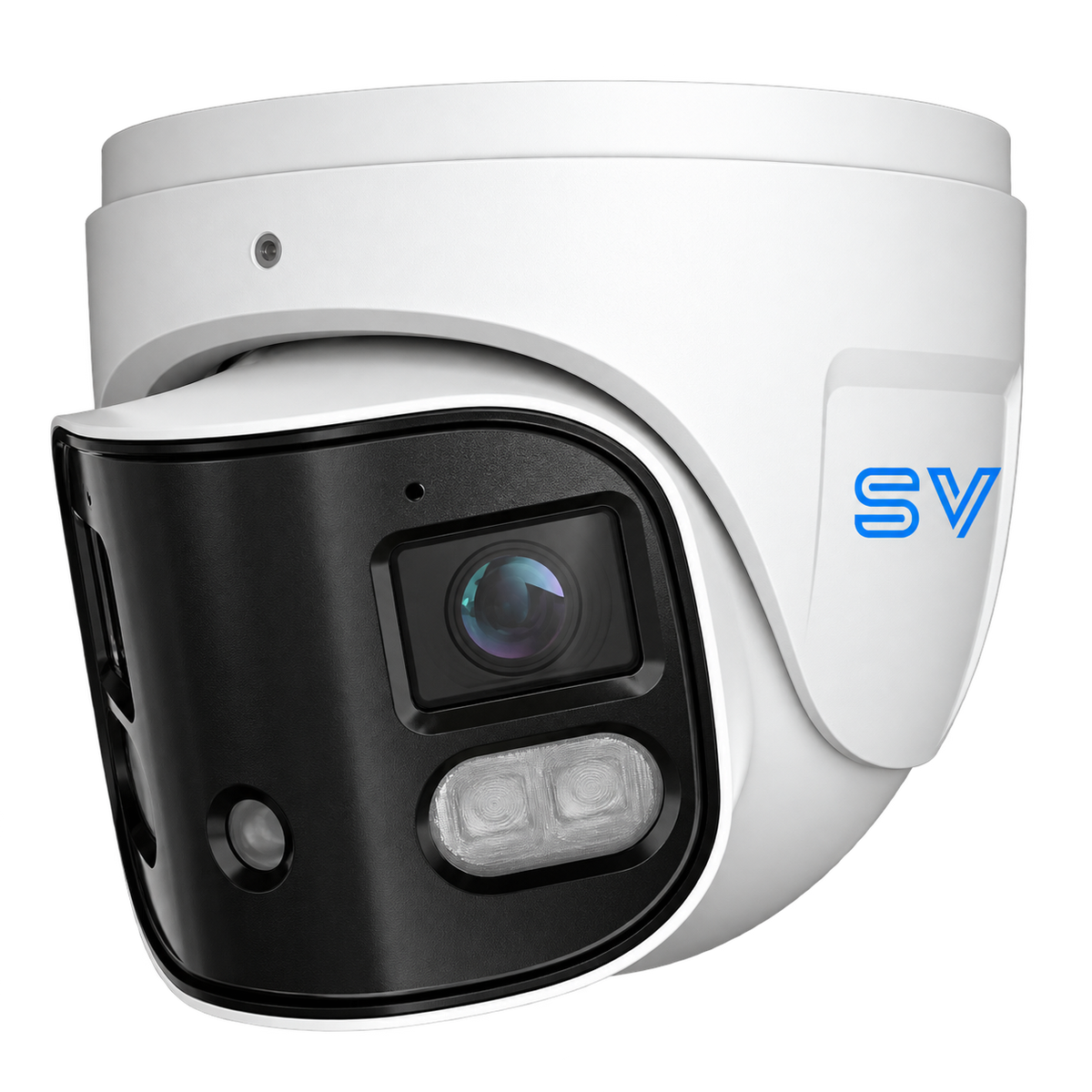

TVT SV -8MP85E3B-DP | 8MP Dual-lens Splicing Turret Network Camera
NDAA Compliant
8MP dual-lens splicing turret camera providing a 180° horizontal view with active deterrence, audio, smart analytics and dual illumination.
FEATURES

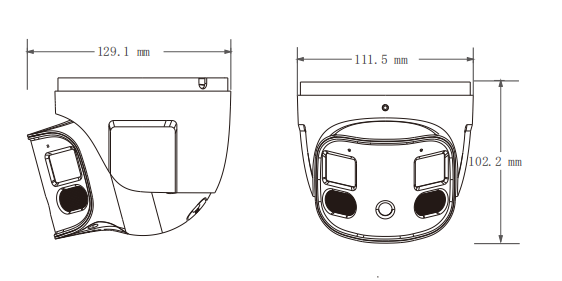

DIMENSIONS
Specifications
| Model | TVT SV -8MP85E3B-DP | |
|---|---|---|
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS × 2 | |
|---|---|---|
| Max. Resolution | 4640 × 1760 | |
| Electronic Shutter | 1/3 s ~ 1/100000 s | |
| Iris Type | Fixed Iris | |
| Min. Illumination | 0.0032 lux @ F1.6, AGC ON; 0 lux with LED ON | |
| Lens | 2.8mm @ F1.6 | |
| Field of View | Horizontal: 180°; Vertical: 66° | |
| Lens Mount | M12 | |
| Day & Night | Auto | |
| Wide Dynamic Range | Digital WDR | |
| BLC | Yes | |
| HLC | Yes | |
| Defog | Yes | |
| S/N Ratio | ≥50dB | |
| Digital NR | 3D DNR | |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264; Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
|---|---|---|
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile | |
| Resolution | 8MP (4640×1760), 6MP (3632×1632), 4MP (3200×1200), 2MP (2304×864), 2048×768, 1600×608, 1200×448, 960×368, 640×240 | |
| Main Stream | 8MP/6MP/4MP/2MP (60Hz: 1~30fps; 50Hz: 1~25fps) | |
| Sub Stream | 2048×768 / 1600×608 / 1200×448 (60Hz: 1~30fps; 50Hz: 1~25fps) | |
| Third Stream | 1200×448 / 960×368 / 640×240 (60Hz: 1~30fps; 50Hz: 1~25fps) | |
| Bit Rate | 64 Kbps ~ 10Mbps | |
| Bit Rate Type | VBR / CBR | |
| Audio Compression | G711A / U | |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser | |
| ROI | Each ROI to be configured separately | |
Interfaces
| Network | RJ45 10M/100M self-adaptive Ethernet port | |
|---|---|---|
| Video Output | No | |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in speaker; 2CH built-in MICs | |
| Storage | Built-in micro SD card slot; up to 256GB | |
| Reset | Yes | |
| Alarm | 1CH alarm input; 1CH alarm output | |
Intelligent Analytics
| Smart Event | Line crossing, region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection | |
|---|---|---|
| Statistics | Target counting by line/area, heat map | |
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception | |
| Face Detection | Face detection and face capture | |
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature | |
DORI Distance
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8mm | 60m (196ft) | 24m (79ft) | 12m (39ft) | 6m (20ft) |
Functions
| Remote Monitoring | Web Browser / TVT NVMS2.0 / NVR / mobile APP | |
|---|---|---|
| Web Browser | Chrome 105.0+ / Edge 105.0+ / Firefox 121.0+ / Safari 14.0+ | |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, NAT, QoS | |
| Interface Protocol | ONVIF | |
| API & SDK | Yes | |
| Storage | Network remote storage; micro SD card storage | |
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, sensor alarm, audio alarm, light alarm | |
| General Function | Watermark, video mask, heartbeat, smart supplement light, ANR, cloud upgrade, disarming | |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and token authentication for HTTP/RTSP/API | |
| PoE | Yes, IEEE802.3af | |
| Supplement Light Range | IR range: up to 30m; White light range: up to 20m | |
| Ingress Protection | IP66 | |
Others
| Power Supply | DC12V / PoE | |
|---|---|---|
| Power Consumption | PoE: max. 10.2W; DC12V: max. 9W | |
| Storage Conditions | -30°C ~ 65°C (-22°F ~ 149°F), Humidity: less than 95% (non-condensing) | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: less than 95% (non-condensing) | |
| Dimensions (mm) | Ø111.5 × 102.2 | |
| Weight (net) | Approx. 0.719kg | |
| Material | Aluminum alloy body | |
| Installation | Ceiling mounting; Wall mounting | |
| Certificate | CE, FCC | |
| Environmental Protection | Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH (EC1907/2006) | |
Available Model
| Available Model | TVT SV -8MP85E3B-DP | |
|---|---|---|
