TVT SV PRODUCT

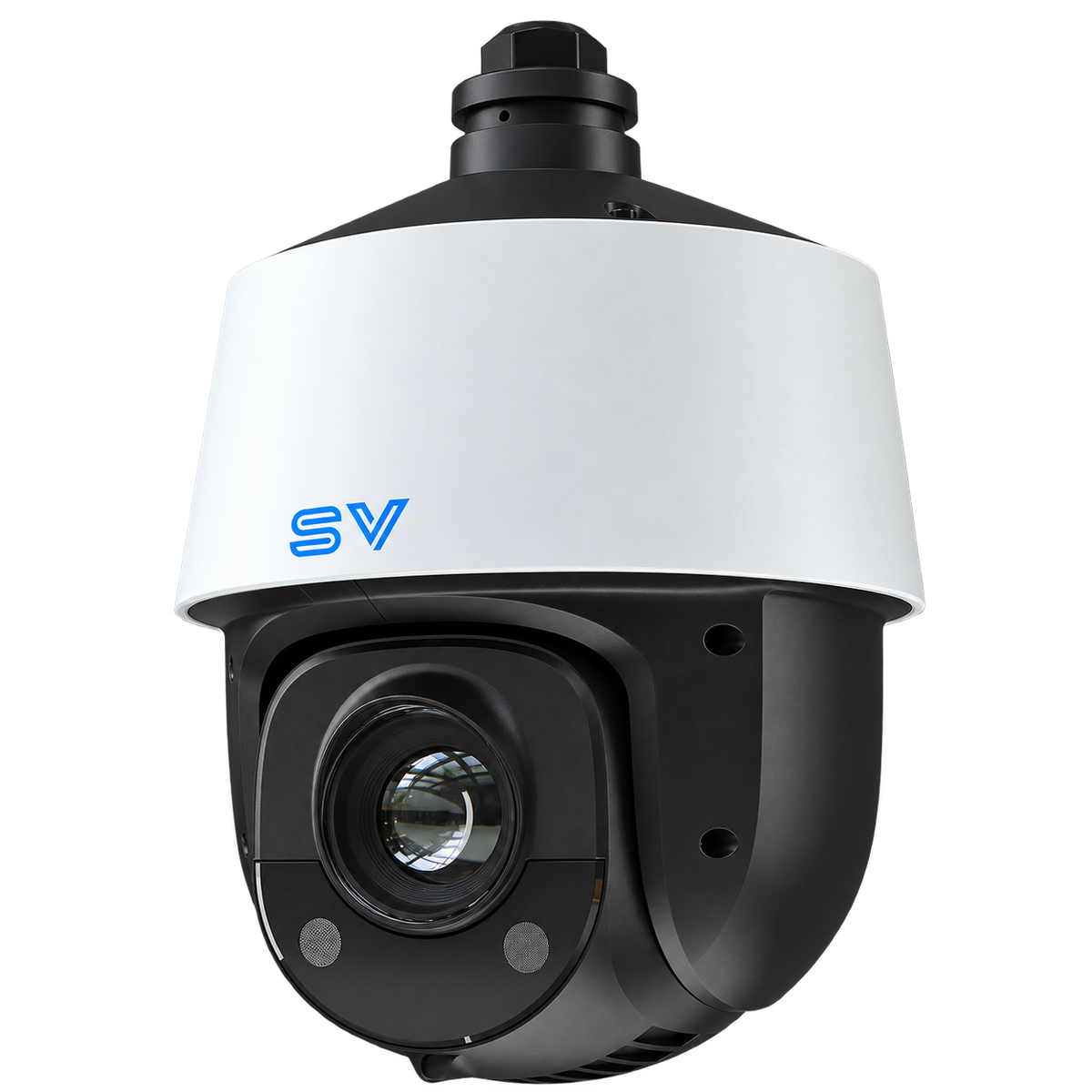

TVT SV -8MP483PTZ25X PTZ | 8MP 25× Optical Zoom Smart PTZ Network Camera
NDAA Compliant
8MP 4K AI PTZ camera with 25× optical zoom, smart human/vehicle tracking, 150m IR illumination and outdoor-rated housing.
FEATURES
Camera Module
| Image Sensor | 1/2.8" SONY latest progressive scan CMOS | |
|---|---|---|
| Max Resolution | 3840 × 2160 | |
| Minimum Illumination | Color: 0.01 lux @ F1.65, AGC ON; B/W: 0.002 lux @ F1.65, AGC ON; 0 lux with IR | |
| Image Settings | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc., adjusted by client | |
| Shutter Speed | 50Hz: 1/25s ~ 1/25,000s; 60Hz: 1/30s ~ 1/30,000s | |
| White Balance | Auto / Manual / Indoor / Outdoor | |
| Gain Control | Auto / Manual | |
| Day & Night Control | Auto / Manual, time schedule | |
| Iris Control | Auto / Manual | |
| SNR | ≥52dB | |
| 3D DNR | Auto / Manual | |
| AE Enhancement | BLC, HLC, WDR | |
| Privacy Mask | 4 areas, up to 8 masks per request | |
| Picture Overlay | Logo picture could be overlaid on video with 128 × 128 pixels, 24-bit BMP format | |
| OSD Overlay | Max. 15 characters/line, 8 lines, white or red font colour | |
Lens
| Focal Length | f=4.8–120mm lens, 25× optical zoom | |
|---|---|---|
| Zoom Speed | Approx. 3.6s (optical zoom, wide-tele) | |
| Field of View | Horizontal: 57.6° ~ 2.4°; Vertical: 33.4° ~ 1.4°; Diagonal: 64.5° ~ 2.9° (wide-tele) ±5% | |
| Working Distance | Wide: 1.0m ~ INF; Tele: 1.5m ~ INF | |
| Iris Range | F1.65 ~ F3.8 (wide-tele) | |
| IRCut Type | Removable IRCUT filter | |
DORI Distance
| Focal Length | Detect (25px/m) | Observe (63px/m) | Recognize (125px/m) | Identify (250px/m) |
|---|---|---|---|---|
| f=4.8mm | 138.2m | 54.84m | 27.64m | 13.82m |
| f=120mm | 3034m | 1297m | 606.9m | 303.4m |
PTZ
| Pan Range | 360° endless | |
|---|---|---|
| Pan Speed | Configurable, from 0.1 ~ 200°/s; Preset speed: 240°/s | |
| Tilt Range | -10° to 90°, auto flip | |
| Tilt Speed | Configurable, from 0.1° ~ 200°/s; Preset speed: 240°/s | |
| Proportional Zoom | Yes | |
| Presets | 360 | |
| Cruise | 8 cruises, up to 16 presets for each cruise | |
| Trace | 4 traces, record time over 3 minutes for each trace | |
| Power-off Memory | Supported | |
| Action Mode | Preset / Cruise / Trace / Auto Scan / Random Scan | |
| 3D Positioning | Supported | |
| PTZ Position Display | Supported | |
| Schedule Task | Preset / Cruise / Trace / Random Scan / Boundary Scanning / Dome Reboot | |
IR
| IR Distance | 150m (492ft), dual-stack IR LED array, 6 pieces in 3 groups | |
|---|---|---|
| Smart IR | Yes | |
Network
| Main Stream | 50Hz: 3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720 @25fps; 60Hz: 3840×2160, 2560×1440, 1920×1080, 1280×960, 1280×720 @30fps | |
|---|---|---|
| Sub Stream | 50Hz: 704×576, 640×480, 352×288 @25fps; 60Hz: 704×480, 640×480, 352×240 @30fps | |
| Third Stream | 50Hz: 1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288 @25fps; 60Hz: 1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240 @30fps | |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
| H.264 Standard | H.264/AVC codec BP/MP/HP, Level 5.1 | |
| H.265 Standard | H.265/HEVC codec MP, Level 5.0 | |
| Video Bit Rate | 64 Kbps to 16Mbps | |
| Audio Compression | G.711 A/U | |
| Audio Bit Rate | 64 Kbps | |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE | |
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | |
| Security Measures | User authentication (ID and password), Host authentication (MAC address), HTTPS encryption, IEEE802.1x port-based network access control, IP address filtering | |
Smart Features
| Basic Event | Motion detection, video tampering alarm, exceptions (network disconnected, IP address conflict, SD full, SD error) | |
|---|---|---|
| Face Recognition | Detecting max. 15–17 faces in the same scene; recognition and comparing default off | |
| Road Traffic | Vehicle detection and tracking | |
| Smart Detection | Tripwire, bi-directional tripwire, illegal intrusion detection, region entrance detection, region exiting detection, etc. More VCA per request | |
| Smart Tracking | Smart tracking of human or vehicle, auto/manual | |
System Integration
| Alarm Interface | 1 alarm input (dry contact); 1 alarm output | |
|---|---|---|
| Audio Interface | 1 audio input (MIC in); 1 audio output, line level, impedance 600Ω | |
| Alarm Linkage | Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. | |
| Network Interface | 1 RJ45 10M/100M adaptive Ethernet, supports PoE+ | |
| SD Card Slot | One micro SD slot, up to 256GB | |
| RS485 | N/A | |
| BNC | N/A | |
| Speaker | N/A | |
| Reset Button | Yes | |
| Heater | Yes | |
| Fan | Yes | |
| Water Removal | Removes water drops by quick spinning | |
| API | ONVIF, supports TVT SDK and third-party management platform | |
| Client | TVT N9000 1.4.5, TVT NVMS 2.0, third-party client, free iOS/Android app | |
| Web Browser | IE8–11, Safari, Chrome | |
General
| Manufacturer Model References | TD-8483IS2N(PE/25M/AR15); TD-8483IS3N(PE/25M/AR15) | |
|---|---|---|
| Languages | Czech, English, German, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Romanian, Spanish, Spanish (Mexico), Simplified Chinese, Turkish, Traditional Chinese | |
| Power Supply | DC12V ±25%, 3000mA; PoE+ (802.3at, Class 3); max. 24W including IR ON and PTZ working | |
| Working Conditions | -40°C ~ 60°C (-40°F ~ 140°F); cold start at -30°C (0.5-hour waiting); 90% RH | |
| Storage Conditions | -40°C ~ 70°C; ≤95% RH | |
| Protection | IP66, 6000V lightning protection, surge protection and voltage transient protection | |
| Material | Aluminium alloy + polymer (plastic with 15% glass fibre) | |
| Dimensions | Ø173mm × 268mm (6.8-inch diameter × 10.55 inches) | |
| Weight | Approx. 2.1kg (4.63lb) | |
| Certification - TD-8483IS2N | IP66, IK10 (excluding glass window), RoHS, CE, FC | |
| Certification - TD-8483IS3N | IP66, IK10 (including glass window), RoHS, CE, FC | |
| NDAA Compliance | NDAA 2019 compliant (as stated in datasheet) | |
